Luminii

Linear Luminaires

Kilo Recessed – Dynamic Color

Recessed Linear 24V System

Warm DimTunable WhitePixelRGB/RGBWDamp
Overview
Specifications

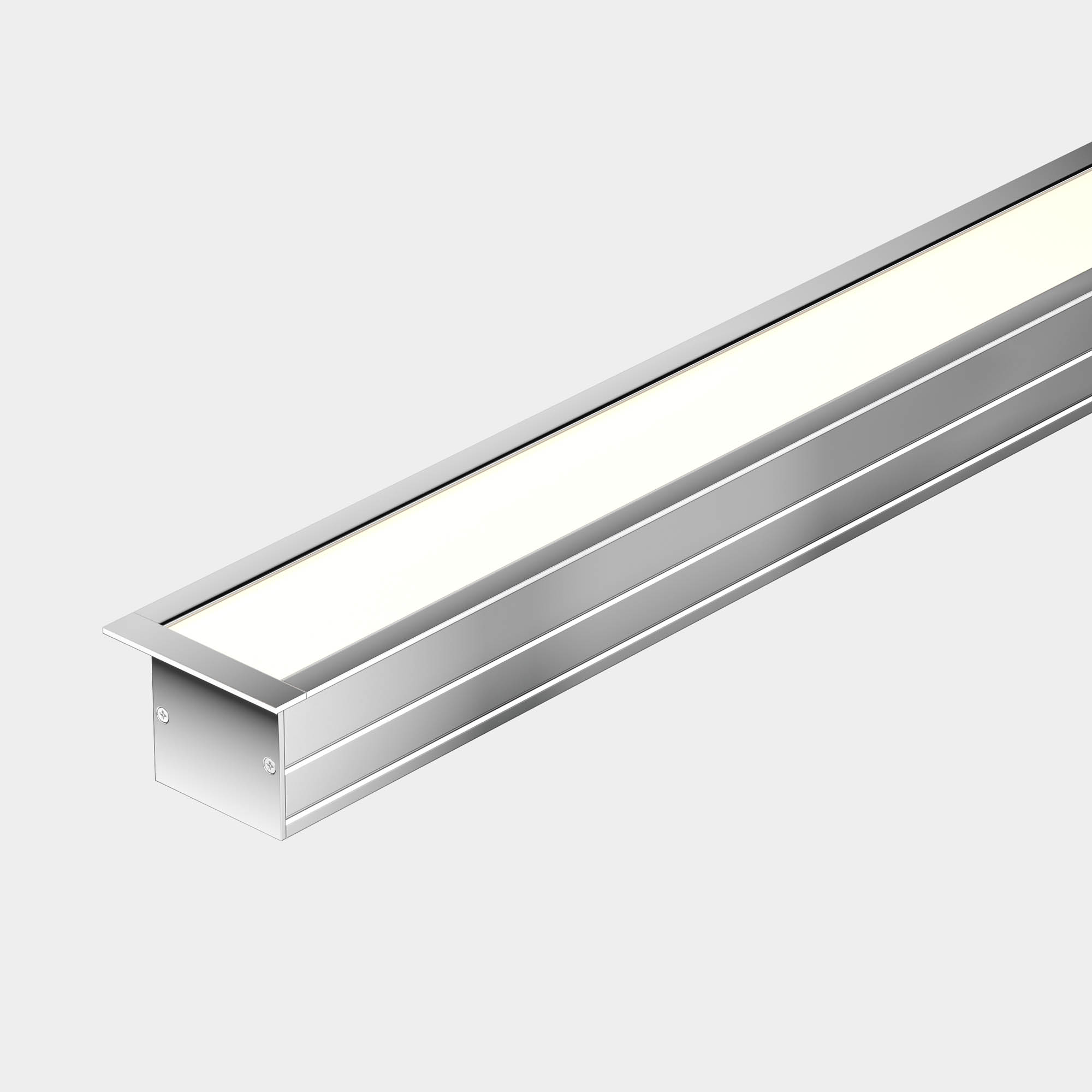

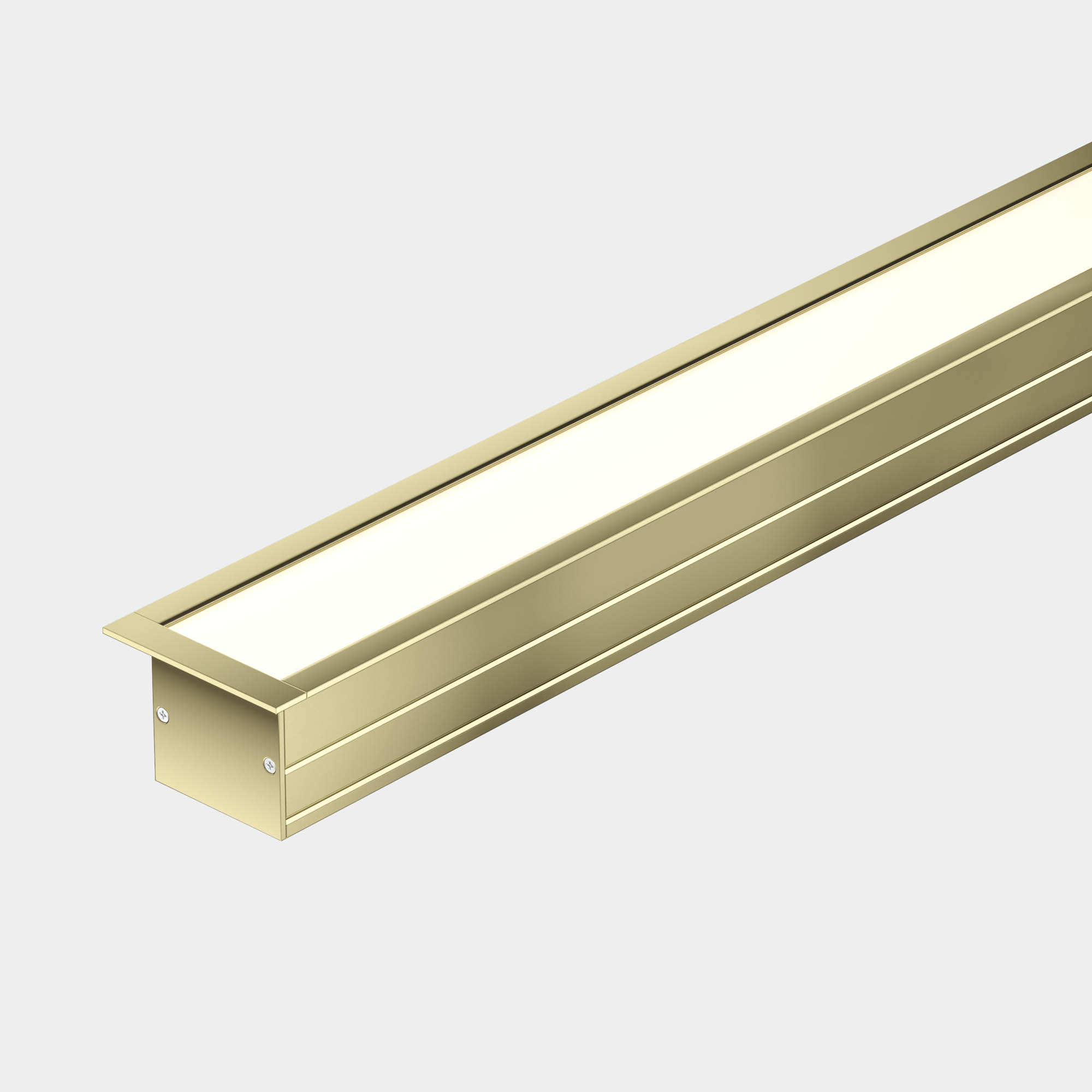

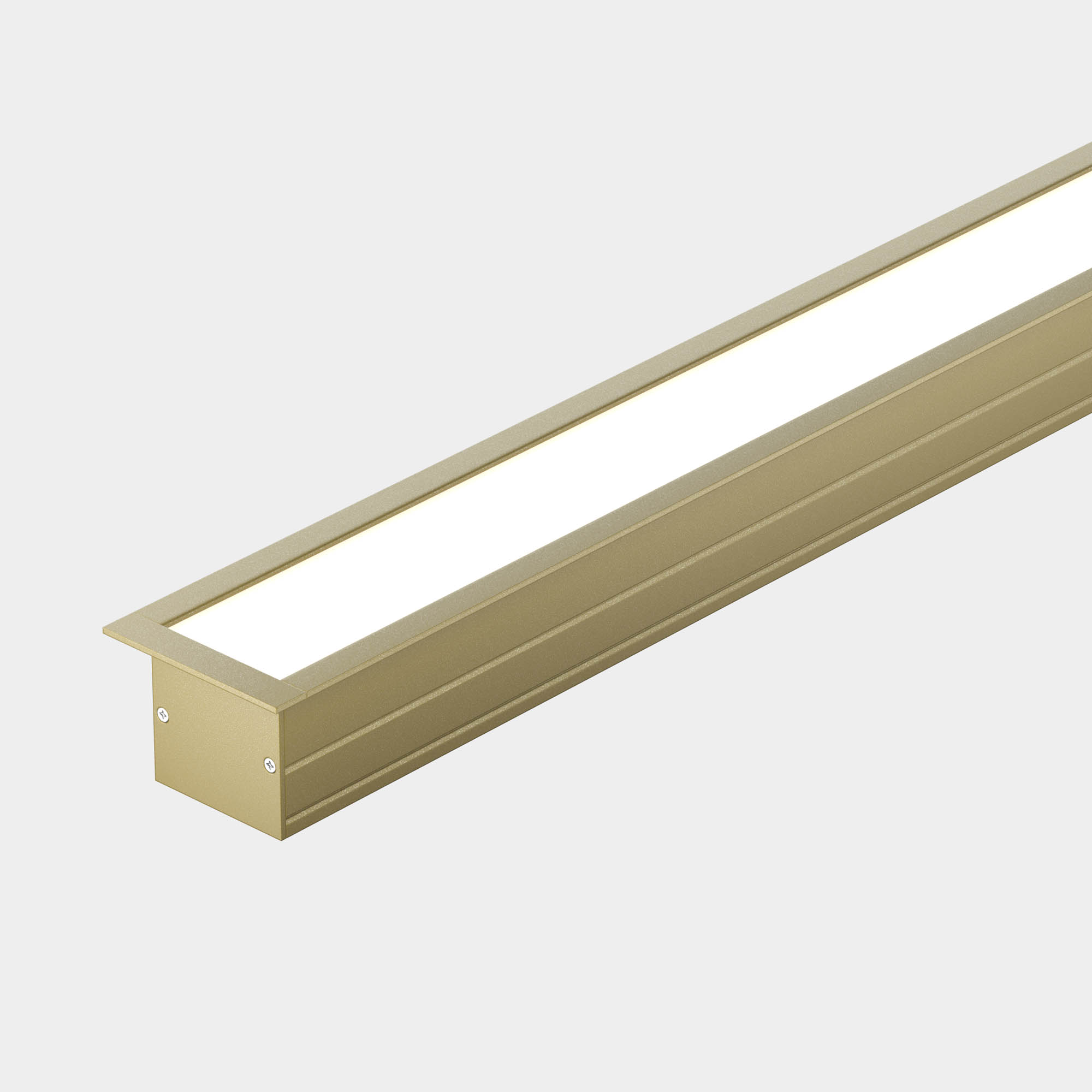

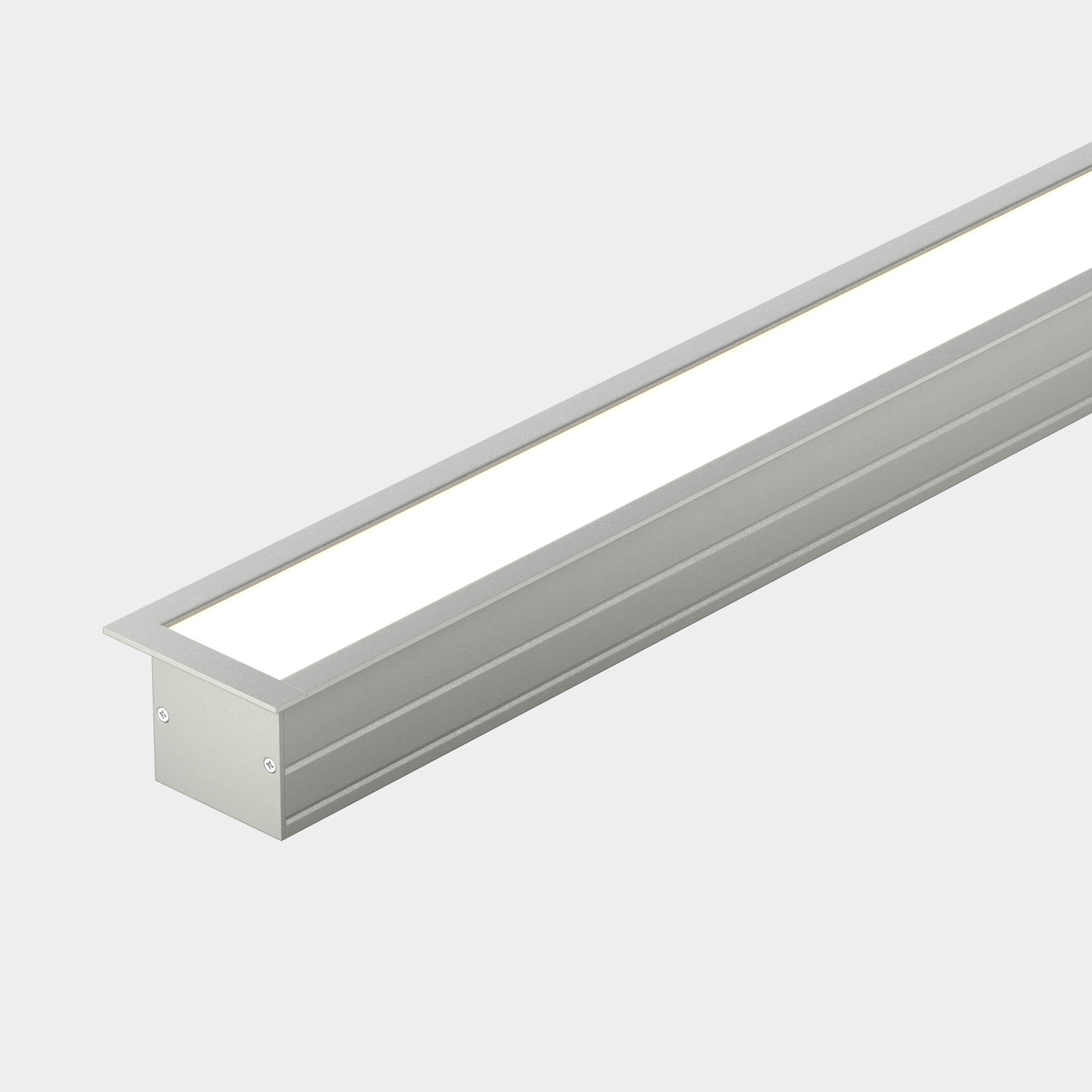

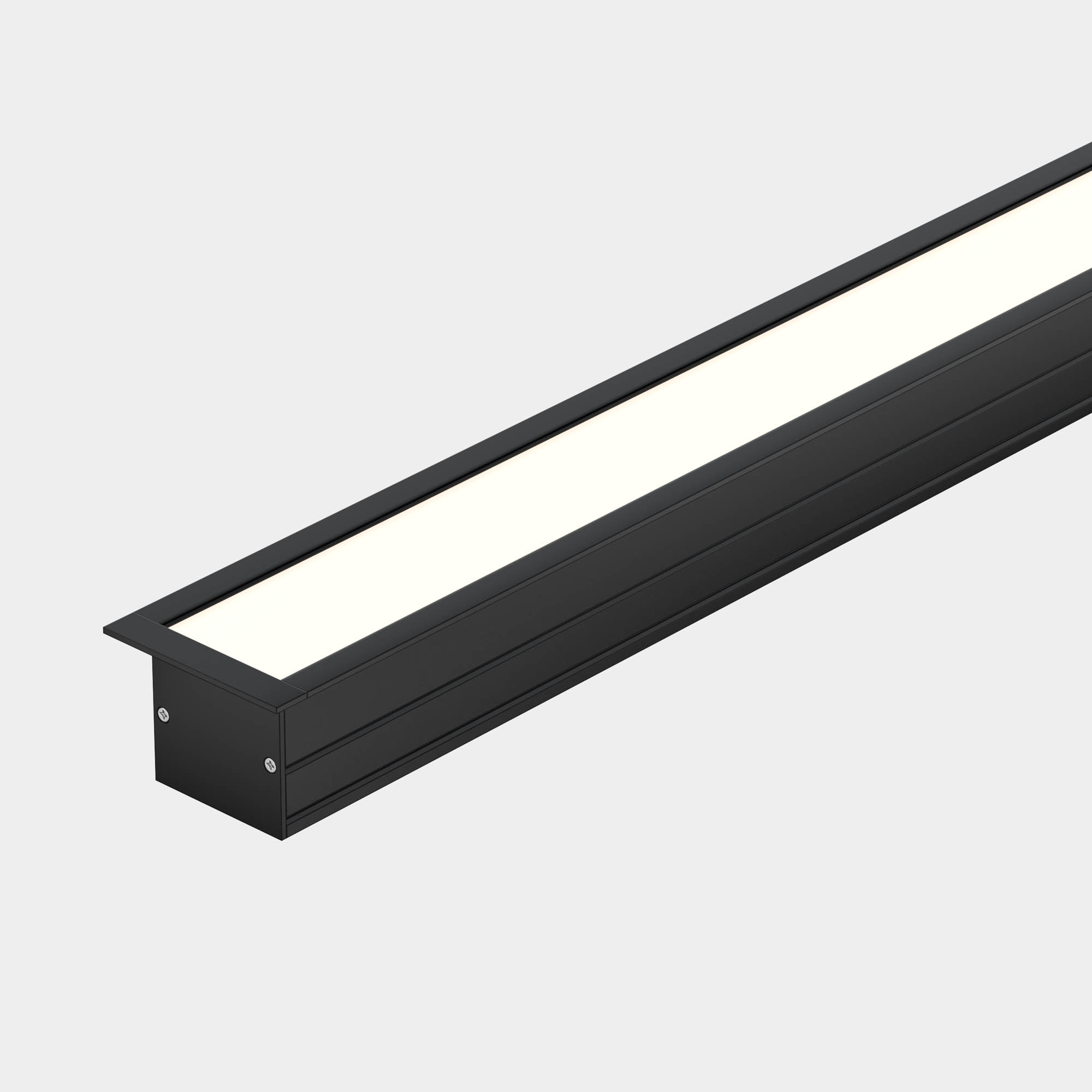

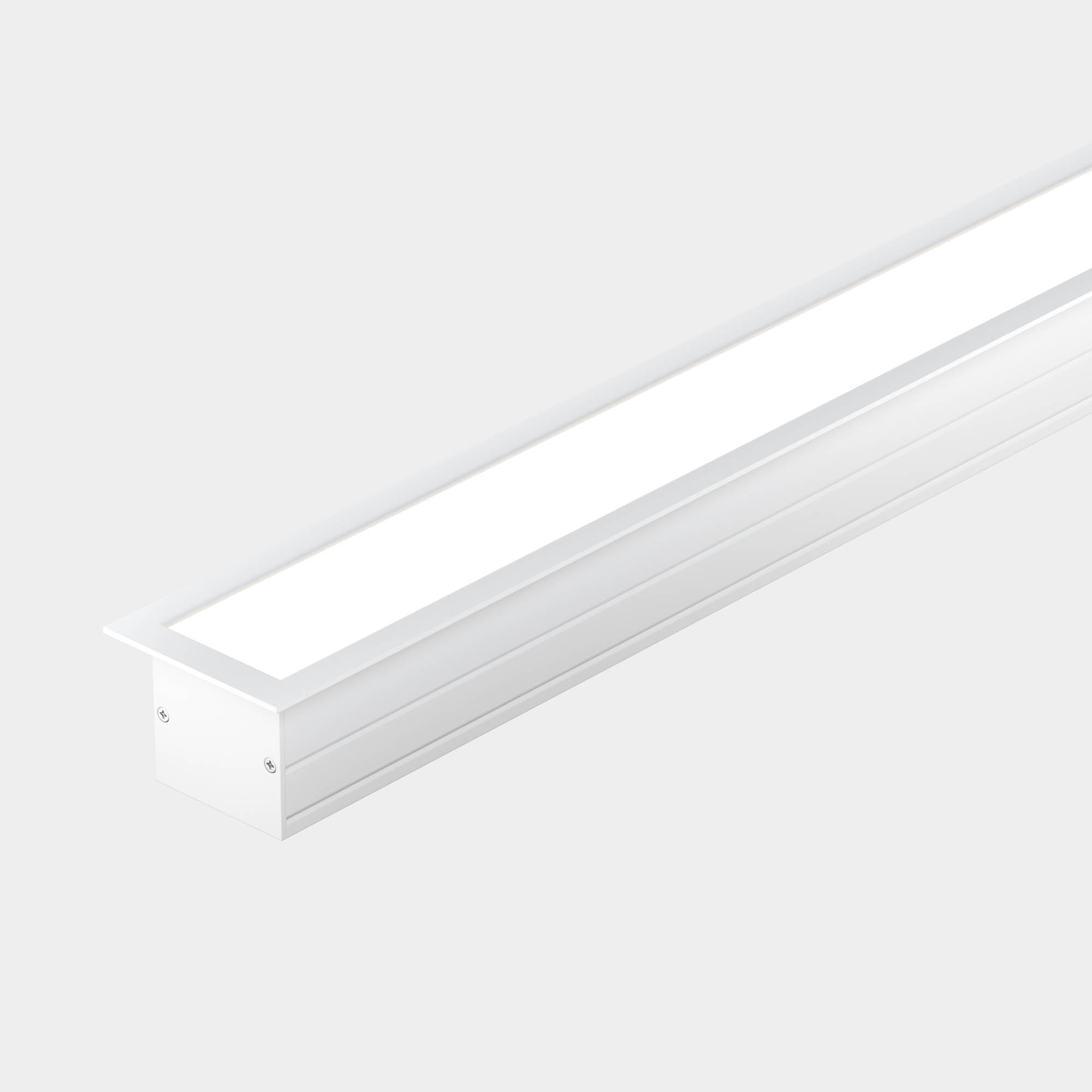

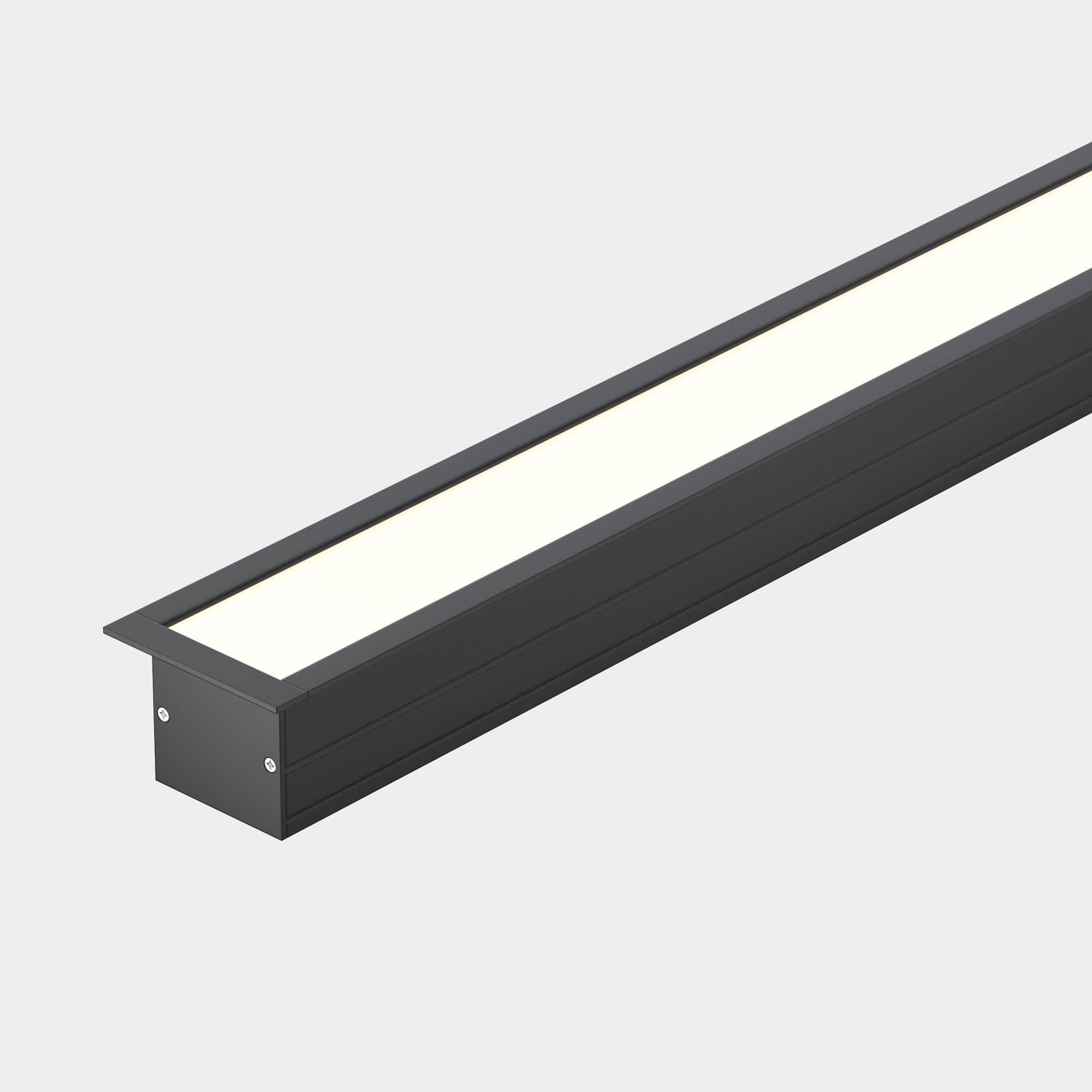

The Kilo Recessed Dynamic Color is a 24VDC Class 2 linear LED strip designed for recessed applications. It offers RGB, RGBW, and Smart Pixel options, delivering dot-free, even illumination with a frosted lens. The fixture can be linked up to 16′, is suitable for damp locations, and comes with a 7-year warranty.

  • CCT: 19K - 27K, 19K - 35K, 27K - 65K, RGB30K
  • CRI: 98
  • Output / ft: 253 lm/ft, 315 lm/ft, 318 lm/ft, 384 lm/ft, 463 lm/ft, 522 lm/ft, 526 lm/ft, 633 lm/ft, 760 lm/ft
  • Mounting: Recessed
  • Type: Linear Fixture
  • Input Voltage: Low Voltage
  • Color: Pixel, RGB/RGBW, Tunable White, Warm Dim
  • Wattage / ft: 10.8 W/ft, 11.2 W/ft, 11.4 W/ft, 15.2 W/ft, 16.6 W/ft, 8.0 W/ft, 9.0 W/ft, 9.2 W/ft
  • Rating: Damp
  • Lens Aperture: 1.05 inch
  • Size: 1.50 in
  • Height: 1.50 in
  • Lens: Clear, Frosted
  • Operating Temperature: -5°F to 125°F
  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Made In: Made in America
  • Warranty: 7 years
  • Product Number: KR
Learn more
Specsheets
Install Guides
Cross Reference Guide
Revit Files
Kilo Recessed Dynamic Color Specsheet
5.23 MB
PDF
Kilo Recessed Install Guide
PDF
Luminii Cross Reference Luminii Optic Arts
PDF
Lighting Luminii Kilo Recessed.rfa
560 KB
RFA
