Luminii

Linear Luminaires

Vesta Dry Surface Mount

Linear System

Tunable White
Overview
Specifications

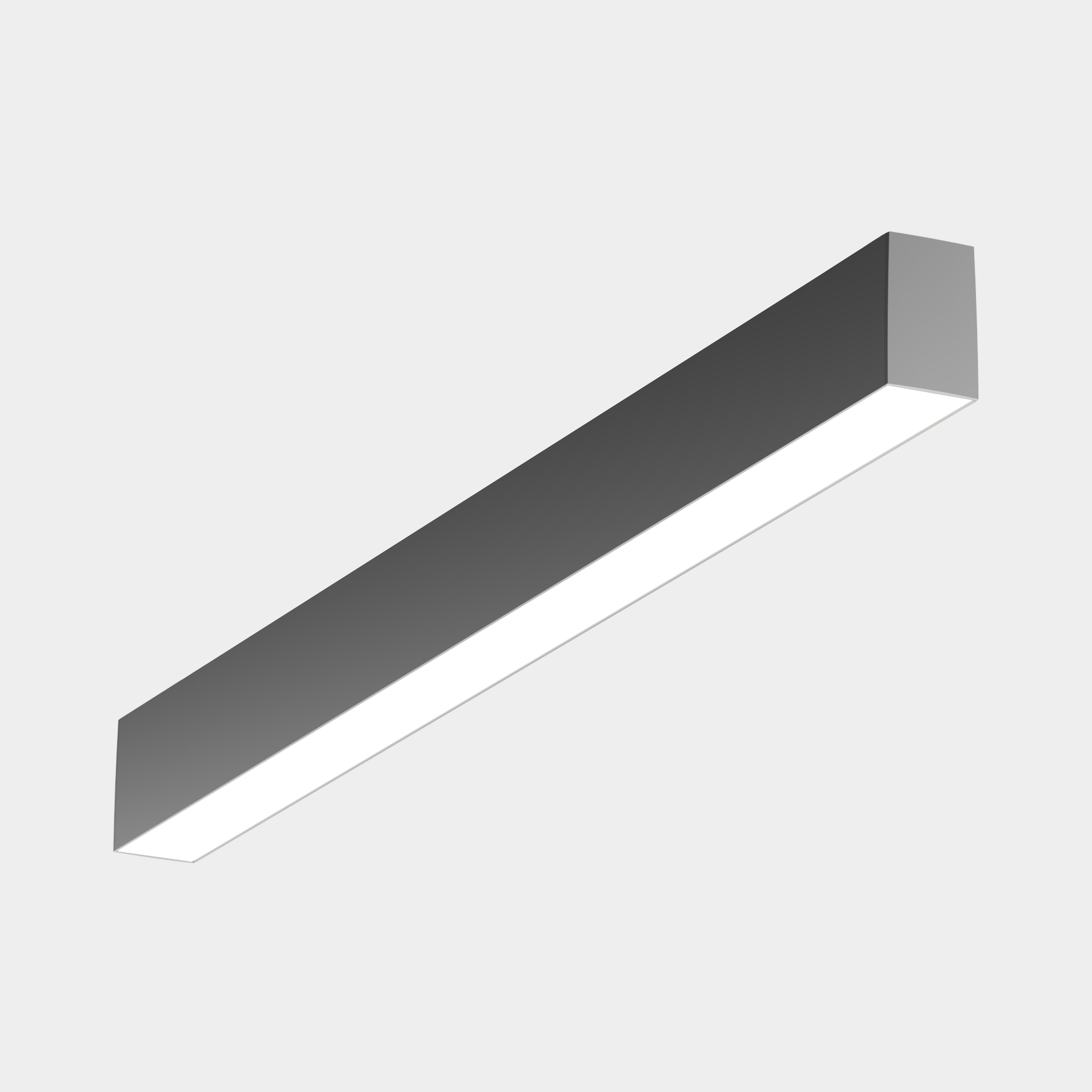

The Vesta Dry Surface Mount linear LED strip is a low-profile, high-output 24VDC linear luminaire designed for ceiling or wall-mounted use in dry interior spaces. It delivers smooth, glare-free illumination via a frosted lens and offers high color fidelity with options up to 97 CRI. Ideal for commercial interiors, classrooms, or high-traffic zones requiring clean architectural integration.

  • CCT: 2700K, 27K65K, 3000K, 3500K, 4000K
  • CRI: 90+
  • Output / ft: 1034 lm/ft, 1220 lm/ft, 400 lm/ft, 418 lm/ft, 566 lm/ft, 592 lm/ft, 776 lm/ft, 843 lm/ft
  • Mounting: Surface
  • Input Voltage: Line Voltage
  • Wattage / ft: 12 W/ft, 15 W/ft, 3.8 W/ft, 4.8 W/ft, 5.7 W/ft, 7.2 W/ft, 9.4 W/ft, 9.6 W/ft
  • Lens Aperture: 2.39 inch
  • Sustainability: RoHS/Reach
  • Made In: Made in Canada, Made in Canada with Imported Parts
  • Warranty: 5 Years
  • Color: Tunable White
  • Lens: Asymmetric, Black, Frosted
  • Product Number: VSD-SM|365
Specsheets
Install Guides
Cross Reference Guide
IES Files
Vesta Dry Surface Mount Static White Spec Sheet
800.23 KB
PDF
Vesta Dry Surface Mount Tunable White Spec Sheet
819.45 KB
PDF
VESTA 1 CM Installation guide
621.88 KB
PDF
VESTA 1 CM System Installation guide
728.94 KB
PDF
Senso Part Number Cross Reference Guide
PDF
VSD-S-2ft-TW04-27K65K-N.ies
16.6 KB
IES
VSD-S-2ft-TW06-27K65K-N.ies
16.73 KB
IES
VSD-S-2ft-TW08-27K65K-N.ies
17.34 KB
IES
VSD-2ft-04-35K-BL.ies
16.76 KB
IES
VSD-2ft-06-35K-BL.ies
16.87 KB
IES
VSD-2ft-04-35K-AS.ies
17.33 KB
IES
VSD-2ft-06-35K-AS.ies
17.33 KB
IES
VSD-2ft-04-35K-F.ies
17.31 KB
IES
VSD-2ft-06-35K-F.ies
17.28 KB
IES
VSD-2ft-08-35K-F.ies
17.29 KB
IES
VSD-2ft-10-35K-F.ies
17.29 KB
IES
VSD-2ft-12-35K-F.ies
17.29 KB
IES
